C86300 SAE430B Manganese Bronze Flange Bushings With Solid Lubricant Plugs Centrifugal Casting

Brand Name : VIIPLUS Sleeve & Bearing

Model Number : Cylinder Bearings,Cylinder Bearings With Flange

Certification : FIBRO Standard

Place of Origin : gleitlagerbuchsen china

MOQ : Standard Size Bushing No Minimum Order Quantity

Price : Bushings High Quality Price Ratio B2B

Payment Terms : T/T, L/C, Western Union,

Supply Ability : bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing

Delivery Time : 2~4 Weeks

Packaging Details : Export carton; Wooden case ; Wood pallet.

Material : CuZn25Al5 Bronze +Graphite,Bronze With Solid Lubricant,CuZn25AI5Mn4Fe3

Feature : Self lubrication

Lubrication : Graphite

Application : Mediate Load But Higher Temperature And Condition With Mediate Running Velocity Etc.

Type : FLANGE/SLEEVE/WASHER

Get A Better Quote : tiffany@viiplus.com

Self-lubricating Bearing Bushing Manufacturer : https://www.viiplus.com/

High Light : Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing

Gleitalger : A plain bearing, or more commonly sliding contact bearing and slide bearing, is the simplest type of bearing, comprising just a bearing surface and no rolling elements. Therefore, the journal slides over the bearing surface. The simplest example of a plain

Bush Bearings Manufacturers Suppliers Exporters : plain bearings. Long, maintenance-free service, manufactures bushings in various designs and from different materials. tiffany@viiplus.com, Bushings - Configure and purchase - https://www.viiplus.com/

Contact Now

The C86300 SAE430B Manganese Bronze Flange Bushings with Solid Lubricant Plugs are centrifugally cast, ensuring a dense and uniform structure that offers excellent mechanical properties. The graphite plugs serve as solid lubricants, providing a smooth and efficient operation even under high loads.

These bushings are designed to handle extremely high load capacities, making them suitable for a wide range of industrial applications where durability and reliability are paramount. The bronze material itself is known for its wear resistance and corrosion resistance, further enhancing the bushings' lifespan.

Our Graphite Plugged Solid Lubricant Bearings are customizable to meet specific requirements, allowing us to provide Gleitlager Custom Parts that perfectly fit your machinery and equipment. Wh you need a specific size, shape, or material, we can work with you to create the ideal bearing solution.

Cast Bronze Bushings, such as our Selbstschmierende Gleitlager, are a trusted choice for industrial applications due to their excellent performance and long-term durability. We pride ourselves on using high-quality materials and advanced manufacturing techniques to produce bushings that exceed expectations.

Contact us today to learn more about our C86300 SAE430B Manganese Bronze Flange Bushings with Solid Lubricant Plugs and other bearing solutions. Our team of experts is ready to assist you with any questions you may have and provide the information you need to make an informed decision.

brass bushing, tin bronze bushing, national standard tin bronze bearing, has a wealth of production experience, has many years of production experience, manufacturers direct sales, good technology, reasonable price, high quality and low price.

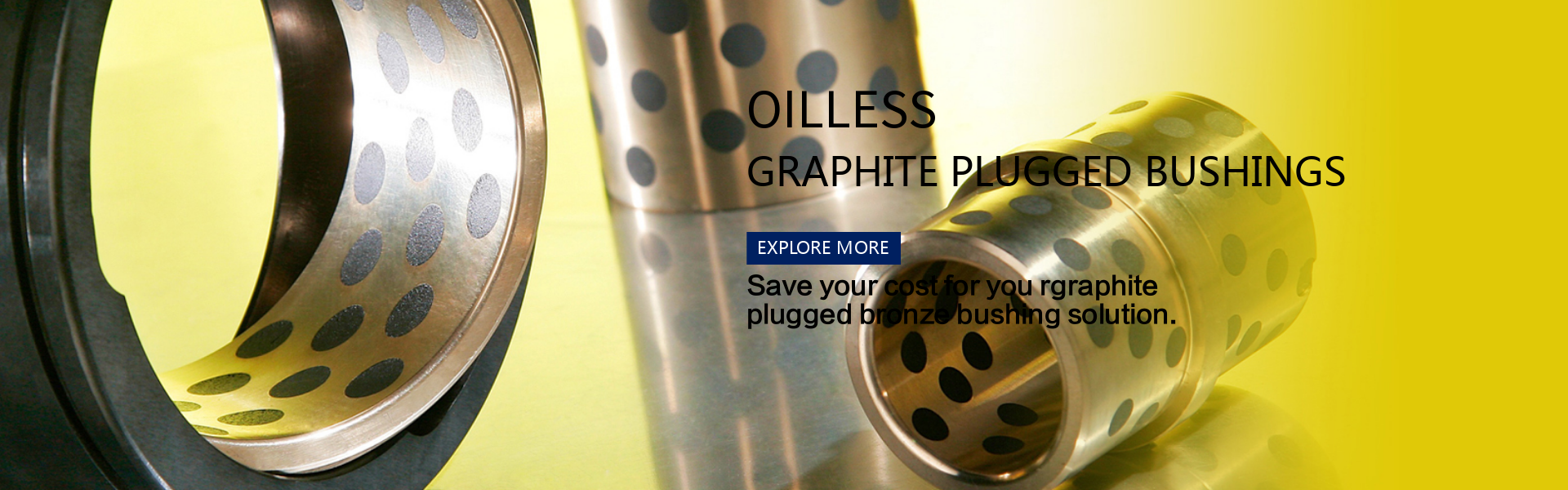

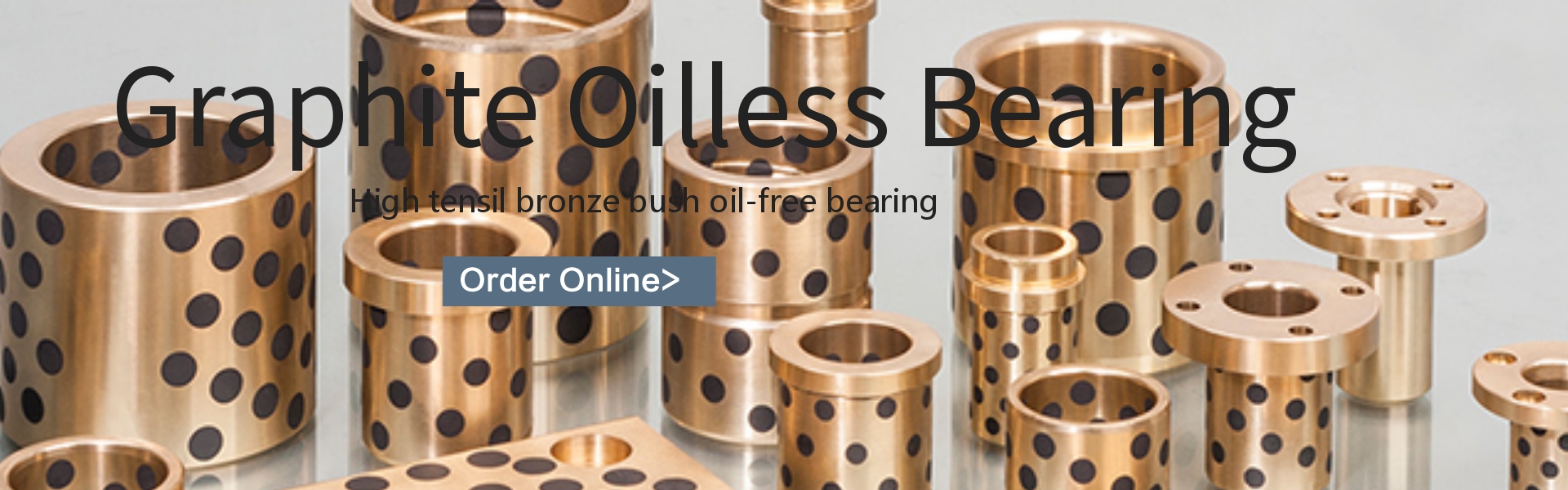

Graphite Plugged Products are a complete line self lubricated products that excel whenever standard lubrication is impractical, including heavy load, high temperature applications. They are manufactured from a variety of copper alloys including Aluminum Bronze (CDA 954), Bearing Bronze (CDA 932) and Manganese Bronze (CDA 863).
Available as Graphite Plugged Bearings, Washers and Self Lubricated Wear plates.

C86300 Manganese Bronze Cast Graphite Bushings are a high-strength, non-heat-treatable copper alloy designed for use in applications requiring a good combination of outstanding wear characteristics and high load carrying capacity at high loads and low speeds.

  • Flange Solid Bronze Metallic Self-lubricating Bearings
  • Copper Cast Bronze Bearings / Flanged Bronze Bearings
  • Cast Bronze Bearing with Graphite Plugs

C86300 SAE430B Manganese Bronze Flange Bushings With Solid Lubricant Plugs Centrifugal Casting

CuZn25Al5 C86300 UNS, mechanical properties as manufactured.Very high strength values. Bearings at high load and low sliding speed.C86300 Manganese Bronze Bushings To find and order parts online from the china factory, simply type the part number from our Solid Bronze Bushes catalog.
Centrifugal Casting Bushing C86300 Bronze Metallic Self-Lubricating Bushings / Plain Bearings Cast Bronze with solid lubricant plugs - Metric Engineered for a Longer More Reliable Service Life

  • C86300* Manganese Bronze Flange Bushings
  • C93200* Leaded Tin BronzeSleeve Bushings
  • C95400* Aluminum Bronze Bushings Material

C86300 SAE430B Manganese Bronze Flange Bushings With Solid Lubricant Plugs Centrifugal Casting


Cast C86300 Manganese Bronze Bushings a solid copper alloy bearing bushing casting produced by centrifugal casting, and belongs to the machining field.
Centrifugal casting is a technique and method of injecting liquid metal into a high-speed rotating casting mold so that the liquid metal moves in centrifugal motion and fills the mold and forms the casting.Because of the centrifugal movement, the liquid metal can well fill the mold and form the free surface of the casting in the radial direction.Cylindrical inner hole can be obtained without core.Helps to remove gases and inclusions from the liquid metal;It affects the crystallization process of metal and improves the mechanical and physical properties of casting.
Manganese bronze alloys can operate under very high loads and speeds. However, bearing applications require reliable lubrication. Besides excellent mechanical qualities, these alloys have good corrosion resistance. The standard alloy in this group is high tensile C86300, which is comprised of copper, manganese, aluminum and iron. This combination raises the tensile strength to over 110,000 KSI.
Symbol:C86300 BRONZE BUSHINGS
Category:ASTM Casting Copper Alloy
Type:Lead Free Brass

Chemical Requirements
Copper
Alloy
UNS No.
Composition, % max, except as indicated
Nickel
Copper Tin Lead Zinc Iron Including Aluminum Manganese Antimony Sulfur Phosphorus Silicon
Cobalt
C86300 60.0–66.0 0.20 0.20 22.0–28.0 2.0–4.0 1.0A 5.0–7.5 2.5–5.0 ... ... ... ...
C90500 86.0–89.0 9.0–11.0 0.30 1.0–3.0 0.20 1.0A 0.005 ... 0.20 0.05 0.05B 0.005
C91100 82.0–85.0 15.0–17.0 0.25 0.25 0.25 0.50A 0.005 ... 0.20 0.05 1.0B 0.005
C91300 79.0–82.0 18.0–20.0 0.25 0.25 0.25 0.50A 0.005 ... 0.20 0.05 1.0B 0.005
C93700 78.0–82.0 9.0–11.0 8.0–11.0 0.8 0.7C 0.50A 0.005 ... 0.50 0.08 0.10B 0.005
A In determining copper minimum, copper may be calculated as copper plus nickel.
B For continuous castings, phosphorus shall be 1.5 % max.
C Iron shall be 0.35 % max. when used for steel-backed.


C86300 SAE430B Manganese Bronze Flange Bushings With Solid Lubricant Plugs Centrifugal Casting

Chemical Composition (%max., unless shown as range or min.)

Chemical Composition mass/%

Cu

Sn

Al

Fe

Mn

Ni

Pb

Si

P

Zn

60-66

0.2

5.0-7.5

2.0-4.0

2.5-5.0

1

0.2

_

_

_


Mechanical properties

Tensile strength Mpa(Min)

Yield strength MPa(Min)

Elongation %

Brinell hardness(HB)

758

427

14

225


Note:


1,In Chemical Composition, Single values represent maximums.
2,Mechanical performance of hardness value is only for reference

Solid Bronze Metallic CuZn25AI5Mn4Fe3 Plug Graphite Cast Bronze Bearings pile driver

VSB-50 Solid Bronze Metallic Self-lubricating Bearings Cast Bronze Bearing with Graphite Plugs

Typical Applications

Pile driver Bronze Bearings


C86300 SAE430B Manganese Bronze Flange Bushings With Solid Lubricant Plugs Centrifugal Casting

Material:CuZn25AI5Mn4Fe3

Structure Characteristics and Applications



VSB-50 Solid Lubricating Bearing is produced by strengthening brass that has good physical performance and good capability for casting. What's more, the brass material has pretty good anti-erosion abitity in air, fresh water and sea water. The surface is regularly and finely machined with sockets in which particular solid lubricant is filled. The product is widely used on consecutive casting and rolling machines, mine-exploiting equipments, ships, steam engine, etc.

Solid Lubricant Casting Aluminum Bronze Bearings Bushings

Characteristics

with Solid Graphite Lubrication. Various material specifications, standard and special shapes are also available


VSB-50 Solid lubricating bearings

1. May work without any ol for long period
2. Extremely high load capacity, good anti-wear and lower friction
3. Particularly appropriate for low speed and high load
4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
5. Good chemical resistant and anti-corrosion characteristics
6. Can b€ used in wide range of temperature from -40℃-+300℃

Strusture

VSB-50 Solid Lubricant Sliding Bearings material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.

Technical Data

Grade

50#

50S1

50S2

50S3

650S5

Material

CuZn25AI5Mn4Fe3

CuSn5Pb5Zn5

CuAI10Ni5Fe5

CuSn12

CuZn25AI5Mn4Fe3

Density

8

8.9

7.8

8.9

8

Hardness

≥210

≥70

≥150

≥75

≥235

Tensile strength

≥750

≥250

≥500

≥270

≥800

Yield strength

≥450

≥90

≥260

≥150

≥450

Elongation

≥12

≥13

≥10

≥5

≥8

Coefficient o linear expansion

1.9×10-5/℃

1.8×10-5/℃

1.6×10-5/℃

1.8×10-5/℃

1.9×10-5/℃

Max.Temp.

-40~+300℃

-40~+400℃

-40~+400℃

-40~+400℃

-40~+300℃

Max.dynamic load

100

60

50

70

120

Max.speed(Dry)

15

10

20

10

15

N/mm²*m/s(Lubrication)

200

60

60

80

200

Compression deformation

< 0.01 mm

< 0.05mm

< 0.04mm

< 0.05mm

< 0.005mm

Chemical Compositions

Product NO.

Chemical Compositions

VSB-50

Cu

Zn

Al

Fe

Mn

Si

Ni

Sn

Pb

60~66

22~28

5.0~8.0

2.0~4.0

2.5~5.0

<0.1

<0.5

<0.2

<0.2

Availability


Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates

START YOUR PROJECT WITH AN APPLICATION ENGINEER
