Perforation Straight Bushing Homogeneous Bronze Material

Name: Perforation Straight Bushing Homogeneous Bronze Material
Brand: REPLACEMENT PLAIN BEARINGS
Price: 1 USD

Brand Name : REPLACEMENT PLAIN BEARINGS

Model Number : E90F E92F E90 E92 BUSHINGS

Certification : DIN 1494 / ISO 3547

Place of Origin : gleitlagerbuchsen china

MOQ : MATE-TO-ORDER CUSTOM BUSHINGS

Price : Sliding Bronze Bearing Dimensions Tolerance,Stock Price

Payment Terms : T/T

Supply Ability : bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing

Delivery Time : 3 - 15 BUSINESS DAYS

Packaging Details : EXPORT CARTON WOOD PALLET WOODEN CASE

Bushing Однородная бронза : Материал: Однородная бронза (Cu 91,3%, Sn 8,5%, P 0,2%)

Feature : High temperature resistance,Wear resistance,corrosion resistance

Performance : High load capacity and long life

Type : Sleeve,Flange,Thrust Washer

Bushings Thinkness : bushing max. thickness of 2.5mm.

Self-lubricating Bushings : Bronze Bushing 60-65-60mm, perforated

Application : agricultural machinery, brakes and certain construction machinery.

Bushing Size : Special dimensions and imperial sizes are available on request

Logo : Customized Logo

Get A Better Quote : tiffany@viiplus.com

Self-lubricating Bearing Bushing Manufacturer : https://www.viiplus.com/

High Light : Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing

Gleitalger : A plain bearing, or more commonly sliding contact bearing and slide bearing, is the simplest type of bearing, comprising just a bearing surface and no rolling elements. Therefore, the journal slides over the bearing surface. The simplest example of a plain

Bush Bearings Manufacturers Suppliers Exporters : plain bearings. Long, maintenance-free service, manufactures bushings in various designs and from different materials. tiffany@viiplus.com, Bushings - Configure and purchase - https://www.viiplus.com/

Contact Now

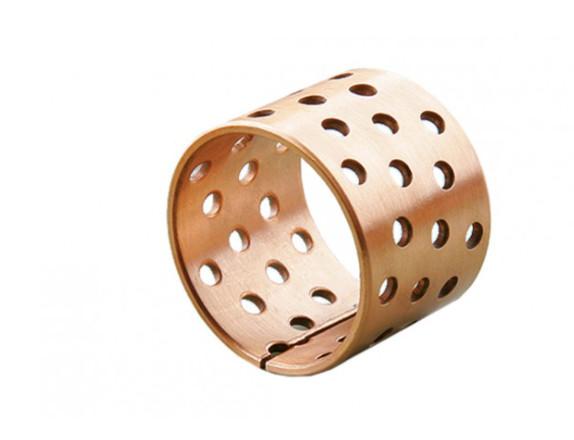

Homogeneous Bronze Straight Perforation Bushing

The perforation straight bushing, made of homogeneous bronze material, is a precision-engineered component designed for specific applications that require high wear resistance and durability. Bronze, known for its excellent corrosion resistance and mechanical properties, ensures that the bushing performs reliably even in demanding environments. The perforation design allows for efficient lubrication and heat dissipation, improving the overall performance of the bushing. Wh used in machinery, equipment, or other industrial applications, the homogeneous bronze perforation straight bushing provides a robust and long-lasting solution.

BRONZE SLEEVES WITHOUT FLANGE WITH PERFORATION
ORDER ORDER ORDER A QUESTION
Technical characteristics
Material: Homogeneous Bronze (Cu 91,3%, Sn 8,5%, P 0,2%)
Yield strength: (Rp0.2) Ca 300 N/mm2
Tensile strength: (Rm) Ca 450 N/mm2
Hardness: Ca 125-150 HB
Friction: 0.08-0.25 µ
Maximum speed: 2.5 m/s
Temperature range: -100 / +200 °C

Load Rate
Ca: 280 N/mm2 0 m/s
80 - 120 N/mm2 0.01 m/s
30 - 40 N/mm2 2,0 m/s

Perforation Straight Bushing Homogeneous Bronze Material

Homogeneous Bronze Straight Perforation Bushing

d — внутренний диаметр	D — внешний диаметр	L — длина втулки
15	17	15
15	17	25
16	18	15
16	18	20
16	18	25
18	21	15
18	21	20
18	21	25
20	23	15
20	23	20
20	23	25
20	23	30
22	25	15
22	25	20
22	25	25
22	25	30
25	28	15
25	28	20
25	28	25
25	28	30
25	28	50
28	31	15
28	31	25
28	31	30
30	34	20
30	34	25
30	34	30
30	34	40
32	36	20
32	36	30
32	36	40
35	39	20
35	39	30
35	39	40
35	39	50
40	44	20
40	44	25
40	44	30
40	44	40
40	44	50
45	50	20
45	50	30
45	50	40
45	50	50
45	50	60
50	55	25
50	55	30
50	55	40
50	55	50
50	55	60
55	60	40
55	60	60
60	65	25
60	65	30
60	65	35
60	65	40
60	65	45
60	65	50
60	65	60
60	65	70
65	70	40
65	70	60
70	75	40
70	75	45
70	75	50
70	75	60
70	75	80
75	80	40
75	80	80
80	85	30
80	85	40
80	85	60
80	85	80
85	90	40
85	90	80
90	95	40
90	95	50
90	95	60
90	95	70
90	95	90
100	105	40
100	105	50
100	105	60
100	105	70
100	105	95
110	115	50
110	115	95
120	125	25
120	125	50
120	125	95
125	130	100
130	135	60
130	135	100
140	145	50
140	145	60
140	145	100
150	155	45
150	155	60
150	155	100
160	165	60
160	165	100
170	175	60
170	175	100
175	180	50
180	185	45
180	185	60
180	185	100
185	190	100
190	195	60
190	195	100
200	205	60
200	205	100
230	235	70
250	255	100
300	305	90

CuSn8P (DIN 17662)

• DIN 1494 / ISO 3547

Bornze Gleitlager CuSn8 Chemical Composition

Part No	Material	Cu	Sn	P	Pb	Zn
E92 & E92F	CuSn8	91.3%	8.5%	0.2%	/	/

Our company's expertise is container copper bushing, and the vast possibilities and modern technology used in the production process enable us to meet the expectations of our most demanding customers.

FB090 bronze bushing with holes

Product description:
FB090 bronze bearing, with bronze material as the matrix, is made of evenly and orderly oiling holes.The bearing has the advantages of large oil storage, easy installation and small design machine, and can replace the use of copper sleeve, can greatly reduce the cost.At present, the product has been used in conveyor, elevator, winding machine, leveling machine and other medium load, low speed occasions.

Sliding Bearing China | High Quality, Factory Price‎

MATERIALS

• Support materialCuSn8P (DIN 17662)

• alternative CuSn6P available

Feature:

1. Easy of fitting and lubrication

2. High load capacity

3. Excellent wear resistance with lower friction

4. High level thermal conductivity

5. Minimum overall dimensions

6. Chemical resistance

7. Can work under dry/marginal lubrication for short period, lower friction factor at initial moving

Wrapped bushing, Bronze CuSn8, DIN 1494 / ISO 3547, Low-maintenance Wrapped Bushing Size

The bearings are wrapped from a cold formed homogeneous bronze(CuSn8 or CuSn6.5),which can achieve exceptional material properties. The standard sizes are fitted with diamond shaped lubrication indents on the bearing surface. These indents serve as lubricant reservoirs to rapidly build up a lubrication film at the start of movement and thereafter reduce the running friction. The material is suitable for construction and agricultural machinery.

Mateial

• CuSn8P (DIN 17662)

• DIN 1494 / ISO 3547

Specially Manufacturing Bushings

The manufacturing process starts with cutting the sheet to the correct rectangular shape. Then the plate will be rolled and calibrated to the final size and finished with chamfering the edges.

Range Of Application

Agriculture machinery, truck cranes & construction machinery, suitable for impact loads

Tolerances

Bushings are manufactured according to DIN 1494/ ISO 3574 with standard sizes for H7 housing tolerances and f7 or h8 shaft tolerances.

Request:

It is used in conditions of increased load, but low speed, for example, on agricultural, construction and engineering vehicles.

It is widely used in hoisting machines, construction machines, automobiles, tractors, trucks, machine tools and some mineral engines.

Bushing Types For Sale

Cusn8p bronze bushing fb090 copper bushes groove bushing fb090 brass bushing cusn8 bushing fb090 bearings bearings oil-free bronze bushing self-lubricating bronze bushing bronze bushing, rolled bearings cusn8p graphite bushing high quality sintered brass bearing fb bronze fb090 oilless bushing

Please contact our technical sales for more information.

Technical Details

Specific load capacity static< 120 [N/mm2]
Specific load capacity dynamic< 40 [N/mm2]
Sliding speed≤ 2.5 [m/s]
Friction value0.05 [µ] to 0.12 [µ] depending on lubrication
Temperature strain- 40 [°C] to + 250 [°C]
Max. PV-value2.8 [N/mm² x m/s]
The percentage of contact area on the ID is > 75%
