C90500 Alloy C905 High Tin Bronze Gleitlager , Graphite Plugged Bronze Bushings

JIAXING VIIPLUS INTERNATIO NAL TRADING CO.,LTD
Contact Now

C90500 Alloy C905 High Tin Bronze Gleitlager , Graphite Plugged Bronze Bushings

Brand Name : VIIPLUS

Model Number : Plastic Mold Customized Part Series

Certification : Met ,PUNCHI,MISUMU Standard

Place of Origin : gleitlagerbuchsen china

MOQ : made to order from china no MOQ

Price : china factory prices

Payment Terms : T/T, Western Union

Supply Ability : bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing

Delivery Time : fast delivery online sale

Packaging Details : EXPORT CARTON WOOD PALLET WOODEN CASE

Type : Plastic Mold Customized Part Series \ Bronze Bearing Graphite,Slide plates

European and American standards : MET NAAMS VOESTALPINE DANLY FIBRO LAMINA

Material : CuSn10Zn2 C90500

Size : custom size

Lubrication : Graphite self lubricating

Surface treatment : Oiled,embed graphite

Get A Better Quote : tiffany@viiplus.com

Self-lubricating Bearing Bushing Manufacturer : https://www.viiplus.com/

High Light : Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing

Gleitalger : A plain bearing, or more commonly sliding contact bearing and slide bearing, is the simplest type of bearing, comprising just a bearing surface and no rolling elements. Therefore, the journal slides over the bearing surface. The simplest example of a plain

Bush Bearings Manufacturers Suppliers Exporters : plain bearings. Long, maintenance-free service, manufactures bushings in various designs and from different materials. tiffany@viiplus.com, Bushings - Configure and purchase - https://www.viiplus.com/

Contact Now

Our C90500 alloy C905 high tin bronze Gleitlager, featuring graphite plugged bronze bushings, offers exceptional performance and durability in a wide range of applications. The high tin content of the alloy ensures superior wear resistance and corrosion resistance, making it ideal for demanding environments.

The graphite plugged bushings provide a smooth and continuous lubrication layer, reducing friction and wear while enhancing the overall efficiency of the system. This not only extends the lifespan of the bushings but also minimizes the need for regular maintenance and lubrication.

Our Gleitlager bushings are precision-manufactured to ensure a perfect fit and optimal performance in various applications. Wh you need them for industrial machinery, automotive components, or any other application that requires high-performance sliding bearings, we have the right solution for you.

With our commitment to quality and customer satisfaction, you can trust us to provide you with the best C90500 alloy C905 high tin bronze Gleitlager and graphite plugged bronze bushings for your specific needs. Contact us today to learn more about our products and how they can enhance the performance and reliability of your equipment.

Plain bearings are made of a bronze base which is refined with a solid lubricant pattern, making it a self-lubricating bearing for a wide field of applications.

We provide self-lubricating solutions and quality assurance for industrial drives worldwide.

OILLESS BRONZE BUSH, C90500 Alloy C905 High Tin Bronze Gleitlager, Graphite Plugged Bronze Bushings

Buy C90500 Alloy, C905 SAE 62,DIN 1705 CUSN12 High Tin Bronze Plugged Graphite Bearings.Get a quote today!C90500 High Tin Bronze Bearng plugged graphite are offered by viiplus. C905 alloys bearngs are used in building, electrical, fasteners, industrial and plumbing industry applications.

Bushings & Bearings - Sleeve, Flange, Thrust

Bushings, Bearings, Thrust Washers in various sizes. These products satisfy most applications and may be resized, oil grooved, or graphited for special needs.

BUY Plastic Mold Customized Part Series ONLINE,GET A QUOTE TODAY!Has passed the RoHS certification of oil-free self-lubricating bearing and solid self-lubricating bearing (mold guide sleeve guide plate).DISCOVERY MORE OILLESS DUIDE ELEMENTS.Met ,Punchi,Misumu Standard & European And American Standards Naams Voestalpine Danly Fibro Lamina

MADE-TO-ORDER FROM CHINA.

Chemical Requirements
Copper
Alloy
UNS No.
Composition, % max, except as indicated
Nickel
Copper Tin Lead Zinc Iron Including Aluminum Manganese Antimony Sulfur Phosphorus Silicon
Cobalt
C86300 60.0–66.0 0.20 0.20 22.0–28.0 2.0–4.0 1.0A 5.0–7.5 2.5–5.0 ... ... ... ...
C90500 86.0–89.0 9.0–11.0 0.30 1.0–3.0 0.20 1.0A 0.005 ... 0.20 0.05 0.05B 0.005
C91100 82.0–85.0 15.0–17.0 0.25 0.25 0.25 0.50A 0.005 ... 0.20 0.05 1.0B 0.005
C91300 79.0–82.0 18.0–20.0 0.25 0.25 0.25 0.50A 0.005 ... 0.20 0.05 1.0B 0.005
C93700 78.0–82.0 9.0–11.0 8.0–11.0 0.8 0.7C 0.50A 0.005 ... 0.50 0.08 0.10B 0.005
A In determining copper minimum, copper may be calculated as copper plus nickel.
B For continuous castings, phosphorus shall be 1.5 % max.
C Iron shall be 0.35 % max. when used for steel-backed.

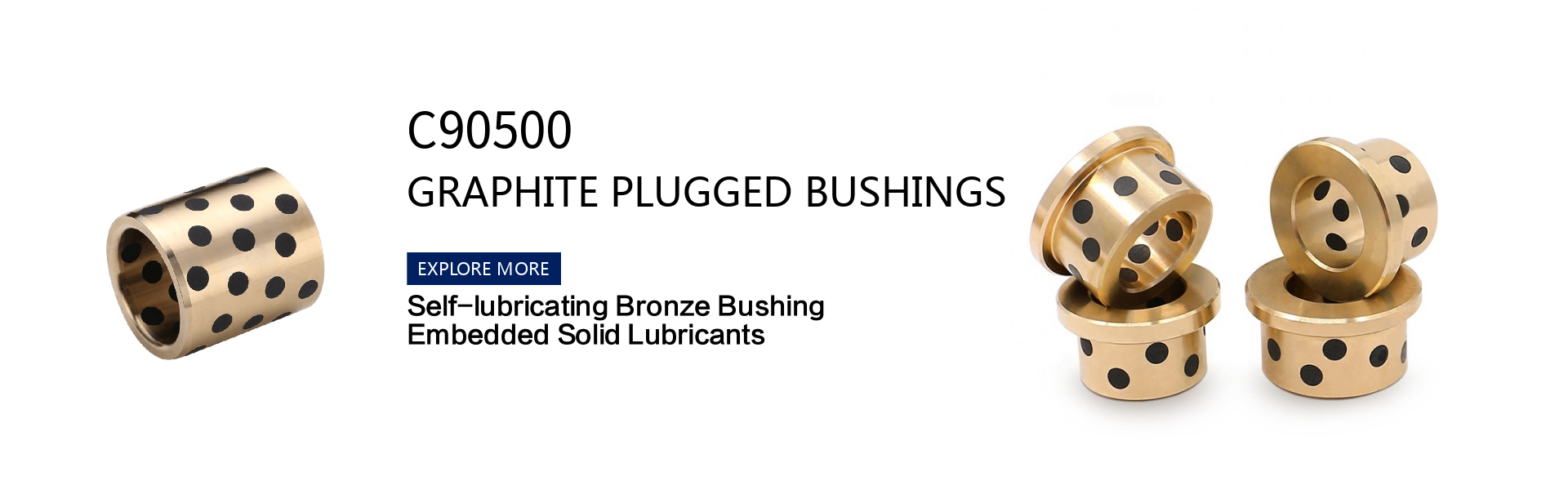

C90500 Alloy C905 High Tin Bronze Gleitlager , Graphite Plugged Bronze Bushings

Standard graphite bronze sleeve

■Lubrication-free
■Corrosion resistance
■Resistant to dust and dirt
■Small friction coefficient

C90500 Alloy C905 High Tin Bronze Gleitlager , Graphite Plugged Bronze Bushings

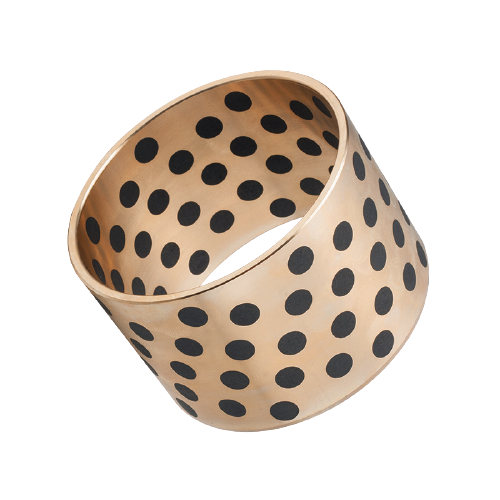

Graphite plugged bronze sleeve

Solid lubricant plugs are available in two different types. The SL1 lubricating caps are made of Graphite and are applicable in dry environments, while SL4 is made of , waxes and fillers, it is suitable for applications where the bearing works in humid environments or even completely submerged under (sea) water.

Solid Lubricant
Lubricant Features Typical application
SL1 Graphite+add Excellent resistance against chemical attacks and low friction.Temp limit 400 ℃ Suite for general machines and under atmosphere
SL4 +Additives Lowest in friction and good of water lubrication ,Temp.limit 300℃ Ship,hydraulic turbine,gas turbine etc

The bronze base is offered in several alloys, from leaded bronze, phosphor bronze and aluminum bronze. Each alloy has different features and makes the bronze sleeve bushing plugged with graphite applicable for operating conditions, where extremely high loads in combination with low speeds apply or in applications where faster speeds occur with medium loads.

Alloy materials

Model JDB-1 JDB-2 JDB-3 JDB-4 JDB-5
Grade
China Brands
GB1776-87
ZCuZn25
AI6Fe3Mn3
ZCuSn6Zn6Pb3 ZCuAI10Fe3 ZCuSu10P1 Steel+ZCuSn6Zn6Pb3 HT250 GCr15
International
ISO1338
GCuZn25
AI6Fe3Mn3
GCuSn6Zn6Pb3 GCuAI10Fe3 CuSn12 Steel+CuSn6Zn6Pb3Fe3Ni5 - B1
Germany
DIN
G-CuZn25
AI5
GB-CuSn5Zn5Pb5 GB-CuAI10Ni GB-CuSn10 Steel+CuSn6Zn6Pb3Ni - 100Cr6
Japanese
JIS
HBsC4 BC6 AIBC3 BC3 BC6 FC250 SUJ2
United States
ASTM/UNS
C86300 C83600 C95500 C90800 C83600 Class40 52100
British Standard HTB2 LG2 AB1 PB4 LG2 - -

Material alloy chemical composition

C90500 Alloy C905 High Tin Bronze Gleitlager , Graphite Plugged Bronze Bushings

Chemical Elements JDB-1 JDB-2 JDB-3 JDB-4 JDB-5
Cu ( % ) Rest Rest Rest - -
Sn ( % ) - 6 - 10 6 - -
Zn ( % ) 25 6 - - 6 - -
Ni ( % ) - - - - - - -
AI ( % ) 6 - 10 - - - -
Fe ( % ) 3 - 3 - - Rest Rest
Mn ( % ) 3 - - - - 0.905 - 1.3 0.20 - 0.40
Cr ( % ) - - - - - - 1.30 - 1.65
C ( % ) - - - - - 2.5 - 4 0.95 - 1.05
Si ( % ) - - - - - 1.0 - 1.3 0.15 -0.35
Pb ( % ) - 3 - - 3 - -

Technical Parameters

Performance JDB-1 JDB-2 JDB-3 JDB-4 JDB-5
Max.load P ( N/mm² ) 100 60 70 60 250
Max.speed V ( m/s ) Dry0.4 oil5 2 2 0.5 0.1
Max.PV ( N/mm²·m/s ) 3.8 0.5 0.6 0.8 2.5
Density ρ( g/cmsup3 ) 8.0 8.0 7.6 7.3 7.8
Tensile strength ( N/mm² ) > 600 > 250 > 500 > 250 > 1500
Elongation ( % ) > 10 > 4 > 10 - -
Hardness ( HB ) > 210 > 80 > 80 > 160 HRC> 55
Max.temp ( ℃ ) 300 350 300 400 350
Friction coef. ( μ ) Oil lubrication: 0.03 Friction(dry): 0.16

C90500 SAE62 Bronze Bearings Plugged Graphite

C90500 (SAE62) Bronze Bearings

Material:CuSn10Zn2

Applicable Conditions:

Mid-load,low speed.

C90500 SPEC

Similar or Equivalent Specification

CDA ASTM Asarcon SAE AMS Federal Other
C90500 B505
B505M
B22
B22M
B143-1A
100 62
J461
J462
4845 QQ-C-390, D6
QQ-B-1005, COMP 16
MIL-B-11553, COMP 16 Gun Metal

Chemical Composition

Cu%1 Pb% Sn% Zn% Fe% P%2 Ni%3 Al% S% Sb% Si%
86.00-
89.00

0.30
9.00-
11.00
1.00-
3.00

0.20

0.05

1.00

0.005

0.05

0.20

0.005

We specializes in the production of automotive stamping mold plastic mold, construction machinery parts, general parts guide sleeve guide plate wedge small parts such as turning milling process.To undertake non - standard custom drawings, welcome to inquire and negotiate.

PRECISION SLIDING BEARINGS MANUFACTURING

Applications: Industrial - Selecting Bronze Bearing Materials

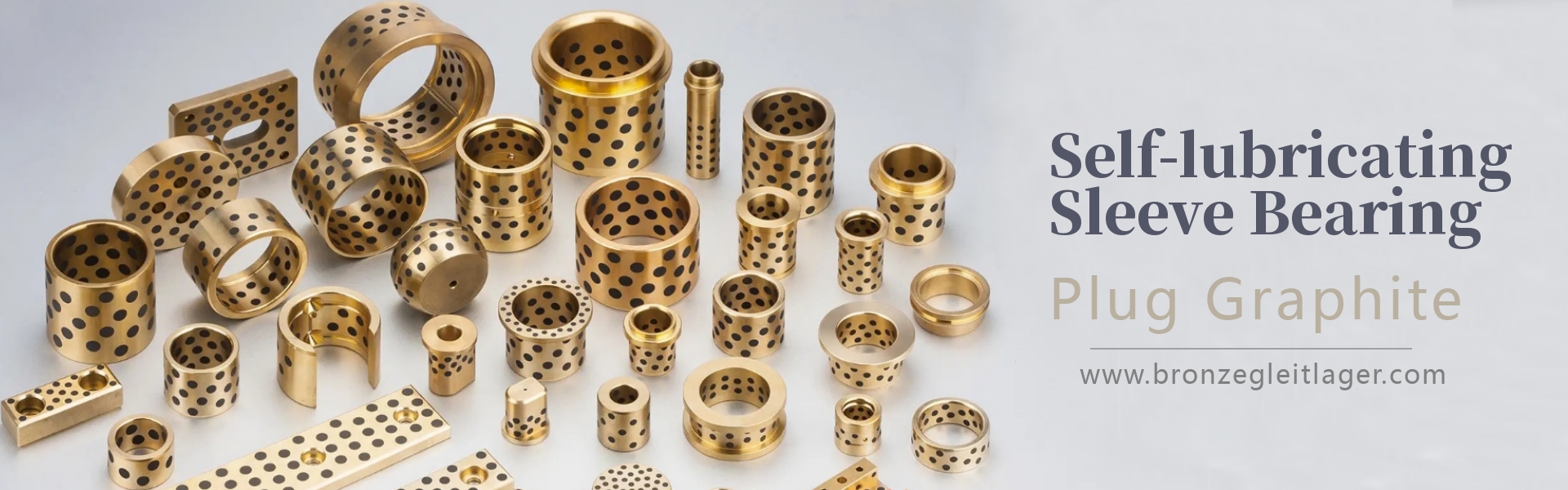

C90500 Alloy C905 High Tin Bronze Gleitlager , Graphite Plugged Bronze Bushings

Graphite plugged bronze sleeve ​application

This product is widely used in metallurgical steel rolling equipment, filling equipment, hydraulic turbines, gas turbines, instrumentation, mining machinery, shipbuilding machinery, textile machinery, shipbuilding industry, aerospace navigation and other fields, and it is also more and more widely used in other industrial and agricultural fields. Machinery.

C90500 Alloy C905 High Tin Bronze Gleitlager , Graphite Plugged Bronze Bushings

FOLLOW US ON

C90500 Alloy C905 High Tin Bronze Gleitlager , Graphite Plugged Bronze Bushings

HTTP://WWW.BRONZEGLEITLAGER.COM
