Hydraulic Metal Polymer Composite Material Cylindrical Bushes are precision-manufactured components designed to handle the rigorous demands of hydraulic systems. These bushes feature a cylindrical shape and are constructed using a metal polymer composite material that offers exceptional performance and durability.
The metal polymer composite material combines the strength and rigidity of metal with the lubrication and wear resistance properties of polymer. This unique combination results in bushes that are able to withstand high pressures and temperatures while maintaining a smooth and reliable sliding surface.
The cylindrical design of these bushes allows for easy installation and integration into hydraulic cylinders, pumps, valves, and other critical components. Their precision manufacturing ensures a tight fit and minimal leakage, which is crucial for maintaining the efficiency and performance of hydraulic systems.
The metal polymer composite material also provides superior corrosion resistance, ensuring that the bushes can withstand harsh environments and chemicals without degrading. This makes them suitable for use in a wide range of industrial applications, including mining, construction, and manufacturing.
In summary, Hydraulic Metal Polymer Composite Material Cylindrical Bushes are precision-engineered components that offer exceptional performance, durability, and corrosion resistance. They are ideal for use in hydraulic systems where reliability and efficiency are paramount.

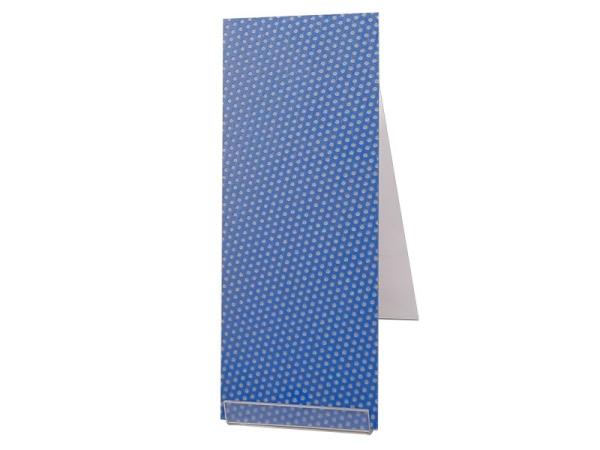

Bushings plate & strip, bronze and POM lined, marginally lubricated, size on request
Sintered POM and Bronze Powder on Steel Backing
POM + SIntered Bronze Powder + Steel Backing + Copper / Ting-plating
Features
POM BLUE bearings are suitable for rotating and oscillating movement, less maintenance requirements due to the long re-lubrication intervals, lower wear, lower susceptibility to edge loading, no absorption of water and therefore no swelling, good damping behaviours, good resistance to shock loads.
Hydraulic Plain Bearing Strips Metal Polymer Composite Material Cylindrical Bushes
Main product categories of the company:
1. Hydraulic components: various standard and non-standard cylinder sleeve production, production of various hydraulic pumps, hydraulic valves and auxiliary sliding bearing products.
2. Hydraulic system: design, manufacture, installation and debugging of various large, medium and small hydraulic bearing accessories for customers.
3. Hydraulic machinery sliding bearing and special purpose equipment self-lubricating bearing
Boundary lubrication lead-free materi Strip Hydraulic Bearing Metal-polymer-composite material cylindrical bushes
Products
• hydraulic system bearings
• hydraulic cylinder sliding bearings
• cylinder sleeve
• hydraulic pump shaft sleeve
• hydraulic valve sliding bearings
• custom bearings for hydraulic accessories
• pneumatic components self-lubricating bearings
Parameters
SF-2 boundary lubrication lead-free material, which has the advantages of low friction coefficient, good wear resistance and long service life. Since the product does not contain lead, the product can be used in places with high environmental protection requirements such as food machinery.
Maximum load pressure: 70N/mm2
Friction coefficient: 0.04~0.20
Applicable temperature: -40 ° C ~ 130 ° C
Metal polymer composite Bushings sizes
| Product Name | POM Bushing |
| Material | Carbon steel + Sintered copper powder + POM |
| Technology | Sintering - Wrapped-Drilling |
| Load Capacity | Static load 250N/mm2 ; Dynamic load 140N/mm2 |
| Surface Treatment | Tin Plating, Copper Plating |
| Advantage | POM High intensity, Oil holes can be refuelled |
| Friction Coefficient | Grease lubrication 2.8N/mm2·m/s |
| | Metallurgical machinery-Mine machinery-Water conervancy machinery- Construction machinery-Farm machinery-Motor vechicles |
| Working Temperature | -40 ~ +130 Degree celsius |
