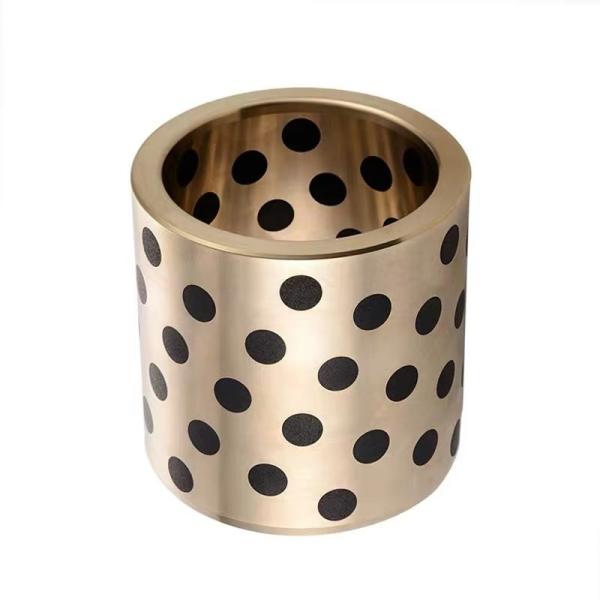

Low Friction Oil Free Bushing Brass Alloy Graphite Copper MISUMI

Name: Low Friction Oil Free Bushing Brass Alloy Graphite Copper MISUMI
Brand: VIIPLUS Sleeve & Bearing
Price: 1 USD

China Low Friction Oil Free Bushing Brass Alloy Graphite Copper MISUMI factory

Brand Name : VIIPLUS Sleeve & Bearing

Model Number : C95400 Aluminum Bronze

Certification : FIBRO Standard

Place of Origin : oilless bushing

MOQ : Standard Size Bushing No Minimum Order Quantity

Price : Bushings High Quality Price Ratio B2B

Payment Terms : T/T, L/C, Western Union,

Supply Ability : plug graphite bearings, China, manufacturers, suppliers, factory, wholesale, Metal Journal Bearing, DU Self Lubricating Bearing, Composite Thrust Bearing, Composite Self Lubricating Bushings, Graphite Alloy Bearing, Flange Cast Iron Bearing

Delivery Time : 2~4 Weeks

Packaging Details : Export carton; Wooden case ; Wood pallet.

Material : thin-walled oil-free bushing/graphite copper

Size : Freedom of design on shape and the size

Type : MISUMI / FIBRO / DANLY standard size

Delivery : Fast delivery

Item : Solid Lubricating Bearings

Market : Mediate Load But Higher Temperature And Condition With Mediate Running Velocity Etc.

Application : Excavators Bushings, Die/Mold Industry, self-lubricating bearing for heavy load application

FEATURES : Excellent corrosion and chemical resistance.Maintenance-free,Excellent wear resistance,Low friction,high temperature resistance

Bearing Bushing Factory Price : tiffany@viiplus.com

Self-lubricating Bearing Bushing Manufacturer : https://www.viiplus.com/

Oilless Bearing Manufacturer : https://www.bronzelube.com/

Manufacturer : bucha de bronze grafitado

High Light : Solid Bronze Plain Bearings, Graphite Flange Bronze Plain Bearings, Mining Machinery

Oilless Bushes : Oilless Bush. Copper Alloy. Straight type. SOB. Material Base Copper alloy (SO-2). Solid lubricant

Bush Bearings Manufacturers Suppliers Exporters : plain bearings. Long, maintenance-free service, manufactures bushings in various designs and from different materials. tiffany@viiplus.com, Bushings - Configure and purchase - https://www.viiplus.com/

Oilless Bush Supplier : www.VIIPLUS.com offers oilless bushings on their website [1]. You can visit their website to explore their product range and make inquiries.

Contact Now

MISUMI offers high-quality low-friction oil-free bushings made of brass alloy, reinforced with graphite and copper. These bushings are designed to provide exceptional performance in a range of industrial applications.

The brass alloy used in the bushings exhibits excellent strength and corrosion resistance, ensuring long-term durability. The addition of graphite and copper further enhances the bushings' wear resistance and self-lubricating properties.

The oil-free design eliminates the need for regular lubrication, reducing maintenance requirements and operational costs. This also makes the bushings suitable for use in environments where oil contamination is not desirable.

The bushings' low-friction characteristics contribute to smoother and more efficient operation of rotating equipment. They are suitable for use in pumps, motors, compressors, and other mechanical systems where high loads and speeds are common.

MISUMI's brass alloy bushings with graphite and copper reinforcement are precision-manufactured to ensure accurate fit and reliable performance. They are an excellent choice for improving the efficiency and reliability of your industrial systems.

Oil Free Bushing - Brass Alloy, Straight, I.D. F7 (MISUMI) (MPBZU12-15)

Oilless Bushing, Self-Lubricating - Bronze Bushings/Bearings

GUIDE BUSHING-SELF LUBRICATING

Graphite Impregnated Brass Bushing Oil Free Bushing - Brass Alloy, Straight, I.D. F7 (MISUMI) (MPBZU12-15)

MPBZ MPBZU MPBR MPBRU MPBPU MPBZP series Oil-free Brass guide bush for self-lubricating

Graphite self-lubricating bearing.pdf

Basic Information

Type	Straight	Bushing Material	Graphite Impregnated Brass	Maximum Allowable PV Value Range(N/mm2•m/s)	1.1～2.0
Maximum Allowable PV Value(N/mm2•m/s)	1.65	Maximum Allowable Load(N/mm2)	29	Maximum Allowable Velocity(m/s)	0.5
Mounting Hole Fits	H7

Model: Various Material: Copper-based alloy Color

classification: MPBZU 20-10L size (20*24*10) MPBZU 20-15L size (20*24*15) MPBZU 20-20L size (20*24*20) MPBZU 20-25L size (20*24*25 ) MPBZU 20-30L size (20*24*30) MPBZU 20-35L size (20*24*35) MPBZU 20-40L size (20*24*40) MPBZU 20-45L size (20*24*45) MPBZU 20-50L size (20*24*50) MPBZU 20-55L size (20*24*55) JDB 20*25*15 JDB 20*25*20 JDB 20*25*25 JDB 20*25*30 JDB 20* 25*35 JDB 20*25*40

Bearing mechanism: solid friction

Lubricant type: solid lubrication

Additional features: high temperature

Bearing load direction: radial bearing

Oil free guide bushing / oil free bushing / copper bushing

MISUMI / FIBRO / DANLY standard size, in stock, with the best quality, the best price, bronzegleitlager.com is the best choice!

Product details

Product Name	Graphite copper bushing
Material Details	Brass/Bronze/Graphite/MoS2
Processing technology	Lathe / installation of graphite / internal and external grinding
Customized	Available
Payment	T.T Western Union
Material Hardness	HRC 55--250
Delivery Time	Stocks Now(Or 8-12 Days)
Transport	DHL,Fedex,UPS,TNT or By Sea
Product Keywords	Oil Free Guide Bushing Oilless Bushing,Copper Bushing

Low Friction Oil Free Bushing Brass Alloy Graphite Copper MISUMI

Configured Specifications

Type	Straight	Bushing Material	Graphite Impregnated Brass
I.D. d(mm)	12	O.D. D(mm)	15
Overall Length L(mm)	15	Maximum Allowable PV Value Range(N/mm2•m/s)	1.1～2.0
Maximum Allowable PV Value(N/mm2•m/s)	1.65	Maximum Allowable Load(N/mm2)	29
Maximum Allowable Velocity(m/s)	0.5	Mounting Hole Fits	H7
Operating Temperature Range(℃)	-40～150	Operating Temperature Range (No Lubrication) Min	-40

・Materials
[ M ] Material: High Tensile Brass Alloy
Solid Lubricant Embedded

Specifications

Part Number	-	L
MPBZ10 MPBZU16	- -	15 20

■Table 1

D	O.D. m6 (*1)	Housing Dia. H7 (*2)
7~10	+0.015	+ 0.015
7~10	+0.006	0
11~18	+0.018	+ 0.018
11~18	+0.007	0
19~30	+0.021	+ 0.021
19~30	+0.008	0
31~50	+0.025	+ 0.025
31~50	+0.009	0
51~80	+0.030	+ 0.030
51~80	+0.011	0
81~120	+0.035	+ 0.035
81~120	+0.013	0

Part Number			L																	MPBZ			MPBZU
Type	dF7		L																	Dm6 (*1)	Thickness (N)	*Rotation Stopper Screw (Reference)	Dm6 (*1)	Thickness (N)
MPBZ MPBZU *L dimensions in ( ) are available only for MPBZ.	5	+0.022 +0.010	8	(9)	10	12	(15)													9	2	M4x8	7	1
	6	+0.022 +0.010	8	(9)	10	12	15	16	(19)	(20)										10			8
	8	+0.028 +0.013	8	(9)	10	12	15	16	(19)	20	(25)									12			10
	10	+0.028 +0.013	8	(9)	10	12	15	16	(19)	20	25	(30)								14			12
	12	+0.034 +0.016	(8)	(9)	10	12	15	16	(19)	20	25	(30)	(35)							18	3		15	1.5
	13			(9)	10	12	15	16	(19)	20	25	(30)	(35)							19			16
	15			(9)	10	12	15	16	(19)	20	25	30	(35)	(40)						21			18
	16			(9)	10	12	15	16	(19)	20	25	30	(35)	(40)						22			20	2
	18			(9)	(10)	12	15	16	(19)	20	25	30	(35)	(40)						24		M5x8	22
	20	+0.041 +0.020		(9)	(10)	(12)	15	16	(19)	20	25	30	(35)	40	(50)	(60)				28	4		24
	20A			(9)	(10)	(12)	(15)	(16)	(19)	(20)	(25)	(30)	(35)	(40)	(50)					30	5		-
	25					(12)	15	16	(19)	20	25	30	(35)	40	(50)	(60)				33	4		29
	25A					(12)	(15)	(16)	(19)	(20)	(25)	(30)	(35)	(40)	(50)	(60)				35	5		-
	30					(12)	15	16	(19)	20	25	30	(35)	40	(50)	(60)	(70)			38	4	M6x16	34
	35	+0.050 +0.025								20	25	30	(35)	40	(50)	(60)	(70)			44	4.5		40	2.5
	40									20	25	30	(35)	40	50	(60)	(70)	(80)		50	5		45
	50											30	(35)	40	50	(60)	(70)	(80)		62	6	M8x16	55
	60	+0.060 +0.030													(50)	(60)	(70)	(80)		75	7.5		-	-
	80	+0.060 +0.030														(60)	(70)	(80)		96	8		-	-
	100	+0.071 +0.036																(80)	(100)	120	10		-	-

[ ! ]For housing diameter, tolerance H7 (*2) to D dimensions (*1) is recommended. (Refer to Table 1) *Indicated dimensions of Rotation Stopper Screw are recommended dimensions.
