Inch Valve Bushing Flanged Steel Bimetal Bushing For Hydraulic Industry

JIAXING VIIPLUS INTERNATIO NAL TRADING CO.,LTD
Contact Now

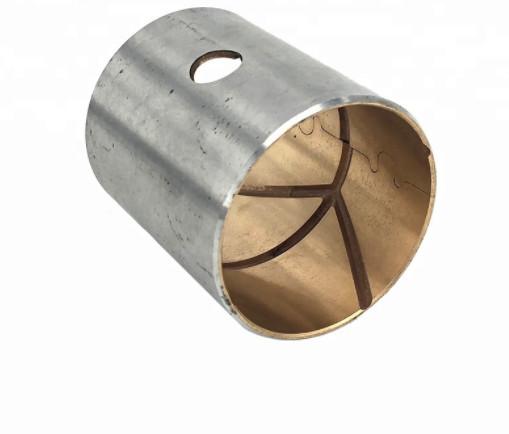

Inch Valve Bushing Flanged Steel Bimetal Bushing For Hydraulic Industry

Brand Name : Straight Sleeve Bore Bushings

Model Number : sleeve Bushing Applications include valves, commercial fire sprinkler systems, mixers, blenders, swivels, and extruders.

Certification : wrapped bushing, Bronze Steel self-lubricatging bushing, DIN 1494 / ISO 3547, Low-maintenance

Place of Origin : Valve Bushing Manufacturer

MOQ : 100 Piece/Pieces (Min. Order)

Price : Negotiable

Payment Terms : TT IN ADVANCE

Supply Ability : Valve Split Steel Bushings Shaft Bearings Suppliers

Delivery Time : 1~2 WEEKS

Packaging Details : Export standard packing

Meterial : Bimetal .

Characteristic : Low-maintenance And Maintenance-free Plain Bearings

Size : Standard Size Available

Port : Shanhai,or Ningbo

Quality : OEM

Type : Bushes, Collar Bushes, Washers, Strips Or Special Designs

Bearing : oilless Flange Bimetal Bushing

Bushing Sample : Available

Application : Agricultural Machine

Bearing Bushing Factory Price : tiffany@viiplus.com

Self-lubricating Bearing Bushing Manufacturer : https://www.viiplus.com/

High Light : Valve bushings suppliers

self-lubricating, metal-polymer plain bearing : Metal-Polymer Anti-Friction Plain Bearings

Bush Bearings Manufacturers Suppliers Exporters : plain bearings. Long, maintenance-free service, manufactures bushings in various designs and from different materials. tiffany@viiplus.com, Bushings - Configure and purchase - https://www.viiplus.com/

Contact Now

For the hydraulic industry, we offer inch valve bushings that are precision-manufactured to meet the demands of high-pressure and high-flow applications. Our flanged steel bimetal bushings are a prime example of our commitment to quality and performance.

The flanged design of these bushings provides enhanced stability and sealing capabilities, ensuring a secure fit within the valve assembly. The steel bimetal construction combines the strength and durability of steel with the corrosion resistance and wear properties of the secondary metal, creating a bushing that is tough yet resilient.

Our inch valve bushings are suitable for a wide range of hydraulic valves, making them a versatile solution for various industrial applications. Wh you need bushings for control valves, safety valves, or any other type of hydraulic valve, we have the right product for you.

We understand that reliability and performance are crucial in the hydraulic industry. That's why we use only the highest-quality materials and manufacturing processes to ensure that our inch valve bushings meet or exceed industry standards.

Contact us today to learn more about our flanged steel bimetal bushings for the hydraulic industry. We'll be happy to provide you with more information and discuss how our products can help meet your specific needs.

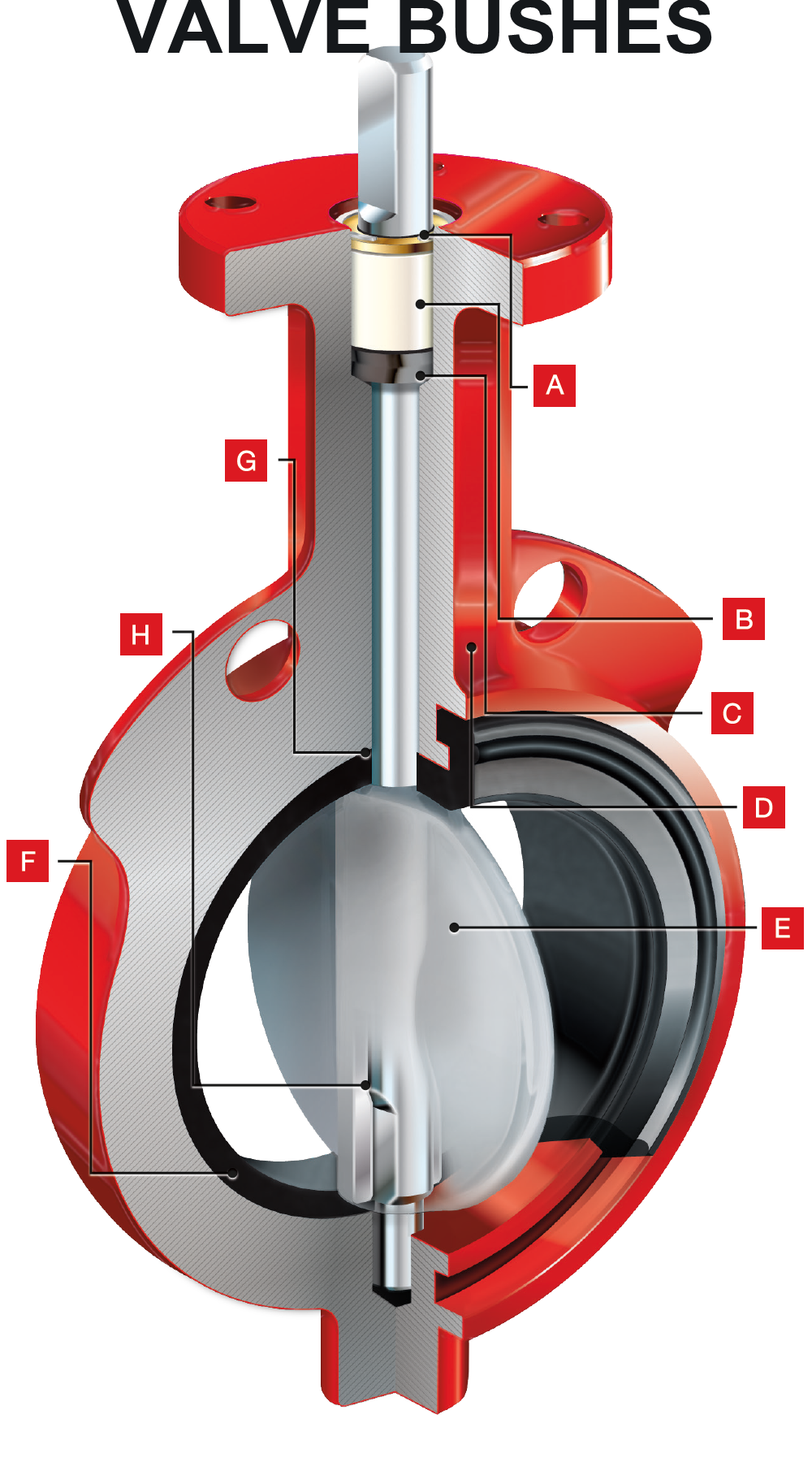

Ball valves Butterfly Valves for the Trunnion Guide Bearings Stem Bearings Inch Valve Bushing , Flanged Bimetal Bushing Inch Size for For Hydraulic Industry

Bimetal bushing for trunion shaft,king pin,poston pin,connecting rod,rocker arm,leaf spring,cam shaft,crank shaft,track roller,carrier roller,idler etc

Bimetal Bearing Bushings are composed of two metal strips, in two different materials; The first is normally in steel / bronze / stainless steel backed with low friction and excellent wear resistance.

Bimetal bearings are able to handle heavy loads and shock loading conditions. Our bimetal bearings have anti-corrosion capabilities and are easy to install, making them ideal for emergency replacements. VIIPLUS bearing is available with stainless steel, carbon steel or bronze backing.

VIIPLUS offers a broad range of sizes, forms and materials in monometallic and bimetallic bearings. Bimetal and metal bearings offer excellent corrosion resistance in industrial outdoor applications and in water, marine and offshore environments. VIIPLUS bearings can be made in many sizes and forms, including thin-walled, thick-walled, flanged, cylindrical, sintered and oil-impregnated, and more. Some popular bearing materials and their benefits include:

Inch Valve Bushing Flanged Steel Bimetal Bushing For Hydraulic Industry

Why choose bimetal bearing?

  • Maintenance-free operation

  • Minimum wall thickness, minimum space requirements

  • Accommodation of heavy loads

  • Wide range of temperatures

  • Good sliding properties

  • Virtually no stick-slip

  • High wear resistance

  • These bearing can applied with precision machining tooling

Characteristic

This bearing is the kind of Flange bush with the steel backing sintered with bronze powder through the friction welding. The surface may be incorporated with various kinds of oil grooves, pockets to meet different necessities of various lubricating
conditions.

Typical application

This product is widely applied in various automobile engines, vehicle hassis, motorcycle clutches, rubbing plate of gear pumps and other hoist machines.

Inch Valve Bushing Flanged Steel Bimetal Bushing For Hydraulic Industry

Technical Data

Dynamic load limit

60N/mm²

Static Load 120N/mm²
frictional coefficient 0.08~0.2
PV limit 2.8N/mm²*m/s
Max Speed >2m/s
Temp.limit -40°C~+250°C

  • Fork lifts
  • Pallet Trucks
  • Cranes
  • Excavators

Technische Daten

  • Wrapped composite sliding bearing
  • Copper-plated or tin-plated steel / bronze
  • Low-maintenance
  • With lubrication pockets

Properties

  • For high load capacity and oscillating movement, as well as for rough operation and temperature load. Long-run lubrication because of lubricant storage.

Materials

  • Support materialSteel copper-plated / tin-plated
  • Sliding layer CuPb10Sn10

Tolerance Details

  • Housing ØH7
  • Bushing inner-Ø after mountingH9
  • Shaft tolerancef7 to h8

Maintenance

  • is a low-maintenance composite sliding bearing, but primary lubrication is necessary. Oil or grease lubrication is possible. Due to solid lubricant storages, lubrication clearances are reduced to a minimum!

Inch Valve Bushing Flanged Steel Bimetal Bushing For Hydraulic Industry

CAPTION

Special dimensions are available on request,split bearing bush, sleeve bearing,flanged bushing
