SS316 + Bronze + Bronze Bushing Material Sliding Bearings with Corrosion Resistance refer to sliding bearings that are constructed using a combination of stainless steel 316 (SS316), bronze, and (Polytetrafluoroethylene) as the bushing material. This material combination provides excellent corrosion resistance due to the inherent properties of SS316 and bronze, as well as the chemical inertness of .
SS316 is a highly corrosion-resistant alloy that offers excellent strength and durability in harsh environments. Bronze, on the other hand, is a metal alloy that possesses good wear resistance and corrosion resistance, particularly in seawater and other marine environments. , also known as ptfe, is a synthetic fluoropolymer with outstanding chemical resistance, low friction, and high-temperature stability.
The combination of these materials in sliding bearings results in a product that is not only corrosion-resistant but also has low friction and good wear characteristics. This makes it suitable for use in applications where corrosion resistance and smooth sliding motion are critical, such as in marine, chemical, and food processing industries.
Metal-polymer-composite material composite – strips
VIIPLUS PLAIN BEARINGS made in China brand of boundary lubrication bearing, grease lubrication bearing because of its own structural features, have very good foreign body embedded sex, can be used in the occasion of dust, maintenance more difficult.All kinds of products are widely used in tractor, combine harvester, bundling machine, cotton picker, etc.
Stainless Steel 316+ Bronze+ Strips
Bushings, thrust washers and strips
Extend service life with composite plain bearings
A wide assortment for virtually every application, VIIPLUS composite plain bearings Long, maintenance-free service life due to low friction.
Select the right bushing forthe application,rolling bearing manufacturer.
We are renowned for the plain bearing field: spherical plain bearings, rod ends, and a much expanded range of bushings.
Advantages of VIIPLUS composite Stainless Steel 316
plain bearings include:
- corrosion resistance
- maintenance-free operation
- very good frictional properties
- high load carrying capacity

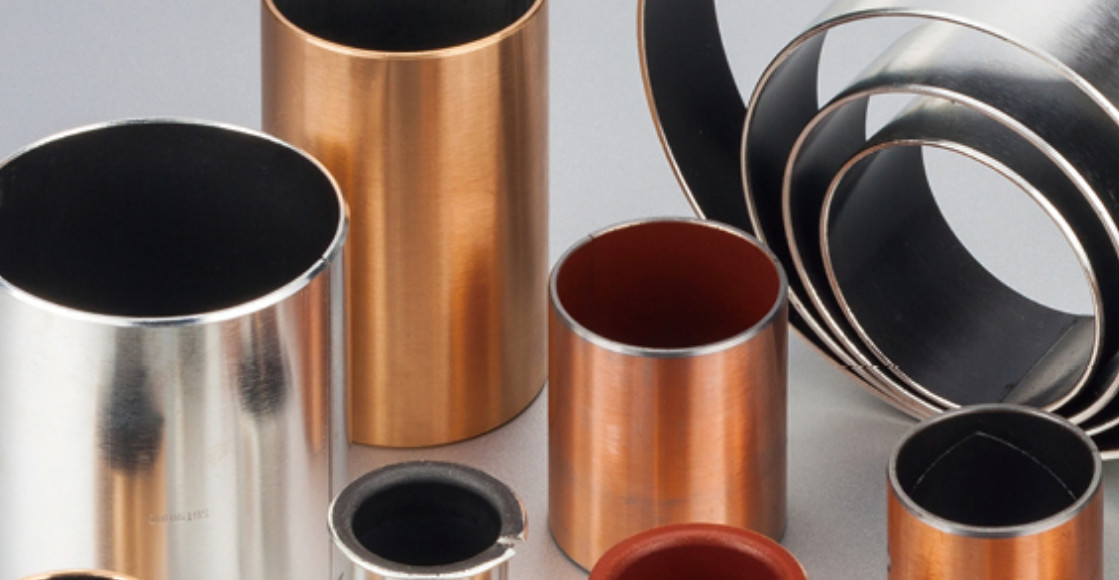

Cylindrical bushes Flanged bushes Thrust washers Flanged washers Strips
composite plain bearings are available, both as straight and flanged bushings, washers and strips.
Maintenance-free, self lubricating Maintenance-free, self lubricating bearings
Bearing materials and products
| | |
| | |
| | |
| | |
| | |
| | Static Load 250N/mm²,Dynamic Load 140N/mm²,Oscoillation Load 60N/mm² |
| | Dry Lubrication 2.5m/s,Oil Lubrication >5m/s |
| | Dry Lubrication 1.8N/mm²· m/s,Oil Lubrication 3.6N/mm²· m/s |
| | Dry Lubrication 0.08~0.20,Oil Lubrication 0.02~0.12 |
| | |
| | Hardness >220 HB,Roughness Ra=0.4~1.25 |
| | |
| Coefficient of linear expansion | |
| | printing, woven, tobacco and gymnastic machinery |
Stainless Steel 316 Flat Strips, Slide paths
For all the global industry Provide high-quality self-lubricating products
Application
Industrial: Lifting equipment, hydraulic pumps and motors, pneumatic equipment, medical equipment, textile machinery, agricultural equipment, scientific equipment, drying ovens, office equipment, etc.
Wrapped Steel Self Lubricating Bearings Oilless Sliding Series
Availability Ex Stock
To order: Standard cylindrical bushes, roll-formed bushes, flanged bushes, thrust washers, flanged washers, strip Non-standard parts
Application
VSB-33 Flat Strips Stainless Steel 316
Strips Flat Strips Stainless Steel 316 are available as an even material section. This material section can be used to make sliding elements in a variety
of shapes.
Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Thrust washers
· Flanged washers
· Sliding plates
Metric bearings and imperial bushings made to order: standard bushing forms in special dimensions, half-bushings, special shapes obtained by stamping or deep drawing, customized bushing designs
Typical Applications
This material meets the demanding criteria for long life and maintenance free performance with or without lubrication.
Automotive: tractors, combines, crop sprayers, earth-movers, graders and other construction, auto machines, specific uses in power steering cylinders, steering gear thrust washers, disc brakes, calipers and pistons, shock absorbers, governor linkage, windshield wiper motor, tilt gear assemblies...
Business machines: photocopy machines, typewriters, mail sorters, postage meter systems, computer terminal printers and peripheral equipment, automatic printing devices, mail processing machinery...
Hydraulics and valves: pumps including gear, rotary, water, axial piston, and other types, ball, butterfly, poppet steam, and other valves and valve trunnions...
Home appliances: tape recorders, refrigerators, air conditioners, cleaners, polishers, sewing machines, ovens, dishwashers, clothes washing machines...And materials handling, marine engine, packaging, textile equipment, tools...etc.
Main applications:
composite dry sliding bearings
are suitable for applications where there are
heavy loads and where a sliding material
with self lubricating properties is a
prerequisite.
Applications include:
• automotive
• material handling equipment
• home appliances and consumer goods
• textile machinery
