Pilllow block Bearing UCT200 & UCT300 Series type seat

Definition of pillow block Bearings: a block or standard to support a journal (as of a shaft) : BEARING

The UCT Dimension Specification Table of Flanged Sleeve Bearing with Seat - Long Life is a comprehensive reference guide that details the precise dimensions and specifications of our high-performance bearing system. This bearing, with its flanged sleeve design and integrated seat, offers exceptional durability and longevity, making it a reliable choice for various industrial applications.

The specification table provides detailed information on the various dimensions of the bearing, including outer diameter, inner diameter, width, and flange size. This ensures that you can select the exact bearing that meets your specific requirements and fits perfectly within your machinery.

The long-life design of our flanged sleeve bearing with seat ensures that it can withstand heavy loads and extreme conditions, maintaining its performance and integrity over time. The use of high-quality materials and precision manufacturing techniques contribute to its exceptional durability.

Wh you are replacing an existing bearing or designing a new system, the UCT Dimension Specification Table of Flanged Sleeve Bearing with Seat - Long Life is an invaluable resource. It allows you to quickly and easily identify the right bearing for your application, ensuring smooth operation and optimal performance.

We pride ourselves on providing our customers with the highest quality bearings and related components. Our commitment to excellence and customer satisfaction is reflected in the meticulous attention to detail and rigorous quality control measures we employ in the manufacturing process. With our UCT Dimension Specification Table of Flanged Sleeve Bearing with Seat - Long Life, you can rest assured that you are getting a bearing that meets the highest standards of performance and reliability.

Bearing service life

Sliding bearing, long bearing life, long service life, corrosion resistance, extreme working conditions, abrasive environment

Bearing UELP, UCP, UKP respectively represent what meaning, what is the difference?

Bearing with seat, P stands for vertical seat, UC stands for cylindrical hole with bearing inner ring, with two stop screws
UK indicates that the bearing inner ring is a taper hole and should be used tog with the taper sleeve
Cylindrical hole of UEL inner ring, fixed with eccentric sleeve
General can be general, who is convenient to choose who installation

Outside the spherical bearing with T UCT203 T204/205 / T206 / T207 / T208 / T209 UCT21 UCT206 diameter 30

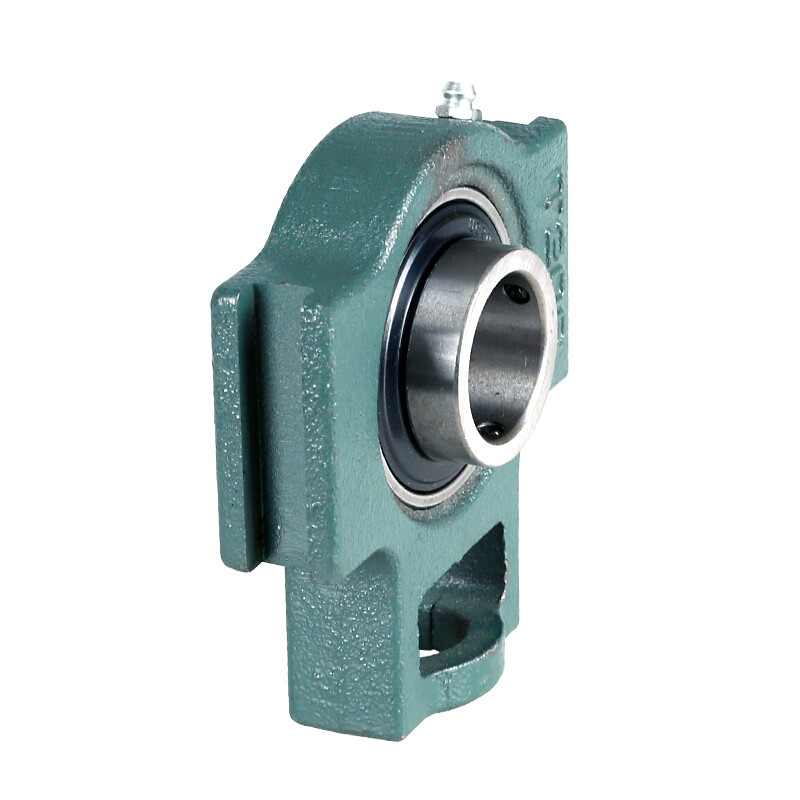

UCT seat bearing formerly known as UCT type seat with slider type wire spherical bearing.Functions: 1. There are two sliders in the upper and lower part of the seat, which can be moved back and forth on the frame. Therefore, it is most suitable for the occasions where the distance between the shafts needs to be adjusted.Used for belt, chain and other transmission shaft.UCT bearing with seat is divided into 200 series and 300 series, UCT300 series bear more load than UCT200 type.

D is the outer diameter of uc spherical bearing, which is not marked in the figure. D is the inner diameter of bearing, which is not listed in the table. The calculation method is the last two digits of the model multiplied by 5, which is the value of D.The fastening screws and bearing seat oil nipple are not shown in the drawing.

UCT300 Pilllow Block Bearing Sizes Table

Dimension specification table of bearing with seat

UCT Dimension Specification Table Of Flanged Sleeve Bearing With Seat , Long Life

TYPE	SIZE(mm)														Pilllow Block Bearing Weight(kg)	Bearing code	bearing block code
TYPE	D	B	S	L	L1	L2	H	H1	A	A1	A2	N	N1	N2	Pilllow Block Bearing Weight(kg)	Bearing code	bearing block code
UCT305	62	38	15	122	76	12	89	80	36	12	26	26	16	36	1.4	UC305	T305
UCT306	72	43	17	137	85	14	100	90	41	16	28	28	18	41	1.8	UC306	T306
UCT307	80	48	19	150	94	15	110	100	45	16	32	30	20	45	2.4	UC307	T307
UCT308	90	52	19	162	100	17	124	110	50	18	34	32	22	50	3.0	UC308	T308
UCT309	100	57	22	178	110	18	138	120	55	18	38	34	24	55	4.0	UC309	T309
UCT310	110	61	22	191	117	20	151	125	61	20	40	37	27	61	5.0	UC310	T310
UCT311	120	66	25	207	127	21	163	140	66	22	44	39	29	66	6.4	UC311	T311
UCT312	130	71	26	220	135	23	178	150	71	26	46	41	31	71	7.6	UC312	T312
UCT313	140	75	30	238	146	25	190	170	80	26	50	43	32	70	9.7	UC313	T313
UCT314	150	78	33	252	155	25	202	180	90	26	52	46	36	85	11.0	UC314	T314
UCT315	160	82	32	262	160	25	216	192	90	30	55	46	36	85	14.0	UC315	T315
UCT316	170	86	34	282	174	28	230	204	102	32	60	53	42	98	16.0	UC316	T316
UCT317	180	96	40	298	183	30	240	214	102	35	64	53	46	98	20.0	UC317	T317
UCT318	190	96	40	312	192	30	250	228	110	35	66	57	46	106	22.0	UC318	T318
UCT319	200	103	41	322	197	31	270	240	120	35	72	57	48	106	25.0	UC319	T319
UCT320	215	108	42	345	210	32	290	260	120	38	75	59	48	115	32.0	UC320	T320
UCT321	225	112	44	345	210	32	290	260	130	45	75	59	52	115	32.0	UC321	T321
UCT322	240	117	46	385	235	38	320	285	140	50	80	65	60	125	40.0	UC322	T322
UCT324	260	126	51	432	267	42	355	320	150	50	90	70	65	140	55.0	UC324	T324
UCT326	280	135	54	465	285	45	385	350	155	22	100	75	70	150	69.0	UC326	T326
UCT328	300	145	59	515	315	50	415	380	155	24	100	80	75	160	84.0	UC328	T328

Pilllow block Bearings Series

Outer spherical ball Pilllow block bearing with vertical seat
Outer spherical Pilllow block bearing with square seat
Outer spherical ball Pilllow block bearing with diamond seat
Cylindrical spherical ball Pilllow block bearing with boss
Outer spherical ball Pilllow block bearing with annular seat
Outer spherical ball Pilllow block bearing with sliding block seat
External spherical ball Pilllow block bearing with suspension seat
External spherical ball Pilllow block bearing with suspension seat
Outer spherical ball Pilllow block bearing with adjustable diamond seat
Outer spherical ball Pilllow block bearing with punch seat
Outer spherical ball Pilllow block bearing with other seats
